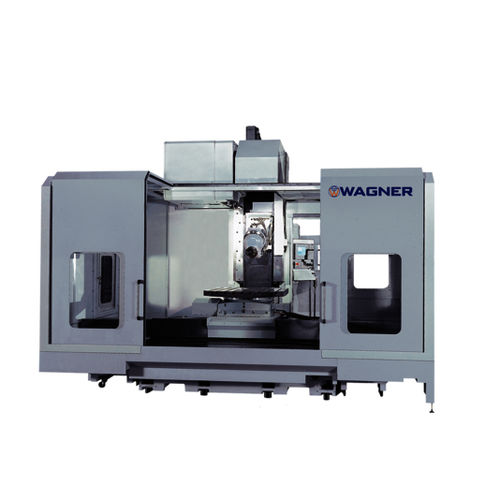

Horizontal CNC milling machine WHB series3-axiswith rotary tableSK50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Structure
- with rotary table
- Spindle mount
- SK50
- Applications
- heavy-duty
- X travel
1,400 mm, 2,150 mm, 2,600 mm, 3,250 mm
(55.12 in, 84.65 in, 102.36 in, 127.95 in)- Y travel
1,000 mm, 1,100 mm
(39.37 in, 43.31 in)- Z travel
900 mm, 1,400 mm
(35.43 in, 55.12 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Work feed X-axis
10,000 mm/min
(6.56 in/s)- Work feed Y-axis
10,000 mm/min
(6.56 in/s)- Work feed Z-axis
10,000 mm/min
(6.56 in/s)- Table load capacity
2,000 kg, 4,000 kg, 4,500 kg, 5,000 kg
(4,409 lb, 8,818 lb, 9,921 lb, 11,023 lb)- Weight
15,000 kg, 21,000 kg, 23,000 kg, 25,000 kg
(33,069.34 lb, 46,297.08 lb, 50,706.32 lb, 55,115.57 lb)
Description
- Flexible heavy-duty machining
- cross table
- Heavy cast construction
- Stepless speed manually adjustable
- Optional integrated round table (similar to a boring machine)
- Optional with H / V head
- Horizontal spindle output
- Tool changer horizontal or vertical
- Control: SIEMENS, FAGOR
