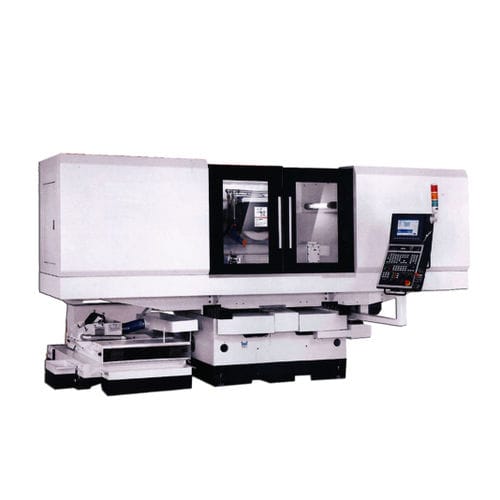

Surface grinding machine SMART seriesCNC3-axis2-axis
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Control type
- CNC
- Other characteristics
- 3-axis, 2-axis, column type
- Spindle speed
Min.: 600 rpm
(3,770 rad.min-1)Max.: 7,000 rpm
(43,982 rad.min-1)- Power
1.5 kW, 11 kW
(2.04 hp, 14.96 hp)- Distance between centers
457 mm, 620 mm, 850 mm
(18 in, 24 in, 33 in)- X travel
490 mm, 650 mm, 1,050 mm
(19 in, 26 in, 41 in)- Y travel
Min.: 460 mm
(18 in)Max.: 2,000 mm
(79 in)
Description
- Cross table version except: from Smart 20/24 traveling column
- SAVED different GRINDING WHEELS
- Dressing with automatic compensation (standard)
- Different grinding cycles: surface grinding, cross grinding, plunge grinding and profile grinding. chainable
- Cross path covered by disc: 8 = 224, 12 = 400, 16 = 500, 24 = 700mm
