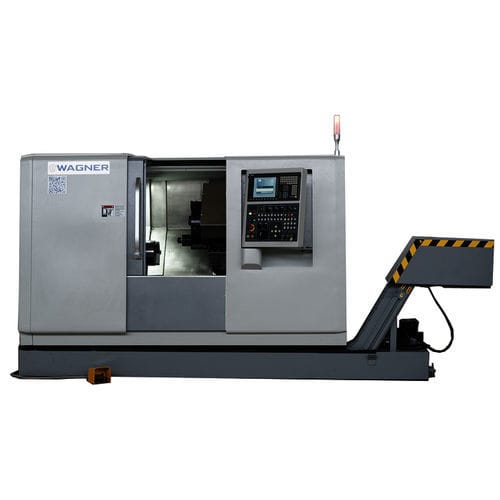

Inclined bed lathe WDS 570 A series

CNChorizontal2-axis

300 mm
(11.81 in)

4,000 rpm
(25,132.741 rad.min-1)

453 mm, 758 mm
(18 in, 30 in)

74 mm
(3 in)

226 mm
(9 in)

500 mm, 850 mm
(20 in, 33 in)

30,000 mm/min
(20 in/s)

30,000 mm/min
(20 in/s)

12 kW, 15 kW, 18.5 kW
(16.3 hp, 20.4 hp, 25.2 hp)

3,400 mm, 4,650 mm
(134 in, 183 in)

1,850 mm
(73 in)

1,800 mm
(71 in)

3,200 kg, 4,600 kg
(7,055 lb, 10,141 lb)
