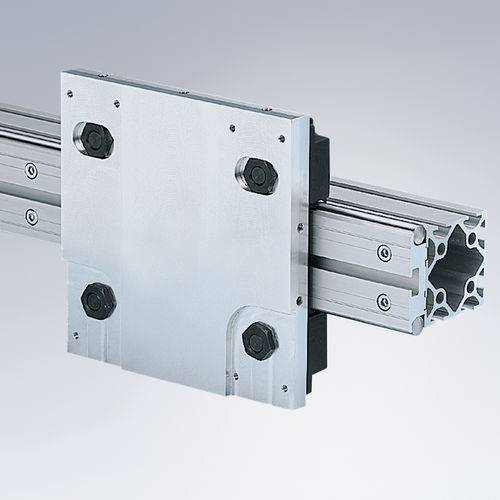

Skate wheel linear guide LZR

high moving speeds

Linear Modules Based on Track Roller Assemblies Because of their rigid structure, track roller assemblies offer high accelerations and speeds over a long service life and allow for fast positioning with high repeatability. They are excellently suited for both single-axis applications and use as multi-axis systems. Linear systems constructed from these modules can meet even the most demanding technical and financial requirements. Track roller assemblies consist of a linear guide with a matching roller carriage. The guide is built from a standard mk profile to act as the profile beam and guide rods that are mounted to the beam with a clamping profile. The roller carriage consists of a support plate and guide rollers, which can be custom-configured to meet your specific requirements. The guide rollers have eccentric bearings to prevent play in the guide. The series and the dimensions chosen for the profile beam are key factors that determine the linear module design.
