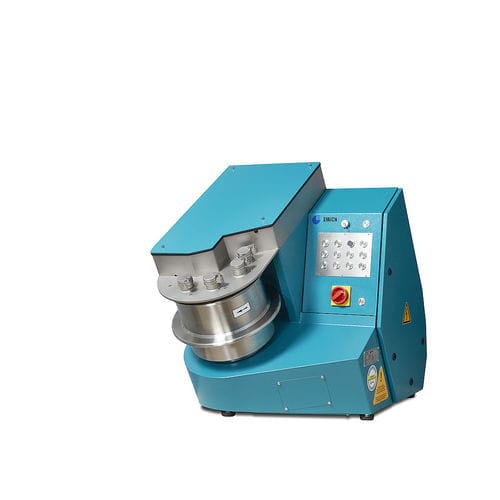

Rotor mixer EL10 Profi Plus

batchsolid/liquidlaboratory

Flexible high-performance mixing system for challenging tasks in the fields of research, development and small-scale production Process materials from dry to plastic and pasty can be processed. Applications The multi-functional mixing system can be used for many different applications, e.g. for mixing, granulating, coating, kneading, dispersing, dissolving, defibering and many more. Industrial scale-up of test results is possible. Feeding Once the tools have been retracted, the raw materials and fluids are filled in from above through openings that can be sealed dust-tight. Emptying First of all, the mixing tools are moved out conveniently with electric motors. Then the mixing pan can simply be taken off for emptying. Drives / motors Mixing pan: Pole-changing helical-worm geared motor with 2 speed steps Mixing tool: Two basic speed ranges can be set up via V-belts. Within these ranges, the speed can be infinitely varied in both directions of rotation thanks to the integrated frequency converter. Power connection: CEE three-phase plug 400V / 16A Service and cleaning All bearings are maintenance-free and greased for service life. All parts that come into contact with the process material are made of stainless steel as standard and are easy to clean.
