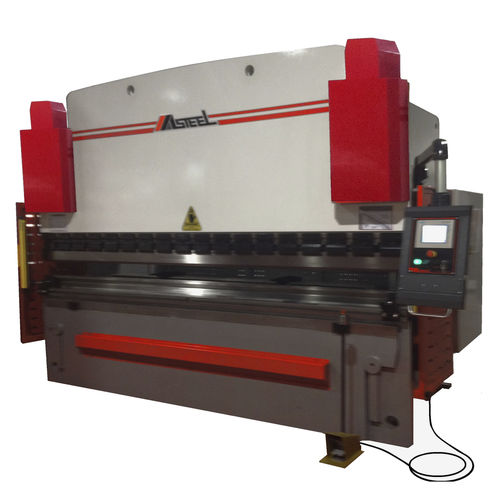

Hydraulic press brake MBHSA series
CNC2-axisprecision

Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision
Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision
Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision - image - 2
Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision - image - 3
Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision - image - 4
Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision - image - 5
Hydraulic press brake - MBHSA series - Masteel America Corp. - CNC / 2-axis / precision - image - 6
Add to favorites
Compare this product

Characteristics

Operation
hydraulic
Control
CNC
Backgauge
2-axis
Other characteristics
precision
Folding length

6 in

Description

Two axis back gauge One axis CNC control:X – axis One axis manual adjustment: R – axis Precision-made back gauge fingers Fully equipped with Masteel tooling and clamping system Floating-adjustable die clamping system for various die application Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M(33Ton/Ft) capacity Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260 2 - Front support arms OPTIONAL EQUIPMENT: CNC R axis , Central lubrication, Safety light curtain Interlock Back Guard, - Quick- set front sheet support (2 SETS) Special top and bottom tools, - 440 or 600V Electrical, Laser protection system for die area Hydraulic oil coolant, - WILA Manuel Anti-Deflection system Nema 12 Electrical Cabinet w/ Thermal Breaker Disconnect WILA Hydraulic top and bottom tool holding system WILA Anti-Deflection System which operates automatically with DNC unit according to tonnage applied
