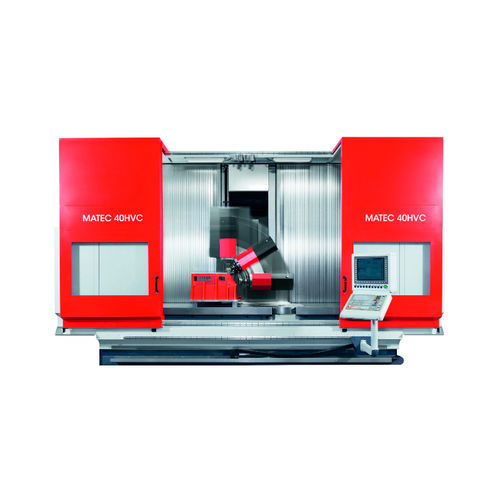

3-axis CNC machining center 40HVC
verticalHSK-100SK50

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product

Go to the matec Maschinenbau website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK50, HSK-100
Number of tool stations
40 tools, 60 tools
Other characteristics
high-performance, high-precision
X travel

1,500 mm, 3,000 mm, 4,000 mm
(59 in, 118 in, 157 in)

Y travel

825 mm, 1,125 mm
(32 in, 44 in)

Z travel

1,100 mm, 1,300 mm
(43 in, 51 in)

Rotational speed

8,000 rpm
(50,265 rad.min-1)

Power

25 kW, 37 kW, 42 kW
(33.99 hp, 50.31 hp, 57.1 hp)

Table load capacity

1,000 kg, 1,500 kg
(2,205 lb, 3,307 lb)

Tool weight (max)

20 kg
(44.1 lb)

Description

The standard machine for complex 5-side machining 1 Short delivery times Standard equipment in all machines 1-Axis CNC swivel head, infinitely variable Heidenhain TNC 640 control CNC rotary table Ø 800 / 1,150 mm Work area full enclosure with roof Direct path measuring system in X-, Y- and Z-axis Chip conveyor Additional options Siemens 840D sl Tool magazine extension to 172places High-pressure coolant unit Rotary tables mounted for shaft machining Work area partition wall Motor spindle Torque max: 265 Nm Swivel head Swivel angle: ± 105° degrees infinitely variable Direct path measuring system: ± 3“ Clamping forces: 2,400 Nm unclamped 4,200 Nm clamped Integrated CNC rotary table For Y-axis 825 mm: Ø 800 mm For Y-axis 1,125 mm: Ø 1,150 mm
