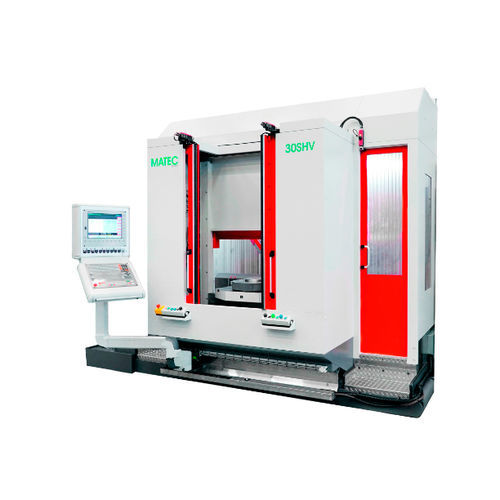

3-axis CNC machining center 30SHV verticalHSK-6348 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-63
- Number of tool stations
- 48 tools
- X travel
2,000 mm
(79 in)- Y travel
600 mm
(24 in)- Z travel
800 mm
(31 in)- Rotational speed
9,000 rpm
(56,549 rad.min-1)- Power
11 kW, 16 kW, 19 kW
(14.96 hp, 21.75 hp, 25.83 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
400 kg
(882 lb)- Tool weight (max)
3 kg, 10 kg
(6.6 lb, 22 lb)
Description
Moving column machining centre with swivel head, designed for medium and large series production. The basic machine is the MATEC 30HV with an X-travel of 2,000 mm.
In conjunction with the swivel head, long workpieces can also be machined at both ends. Additional machining units, oversized tools and special equipment can also be set up economically via pick-up stations. Rotary distributors for clamping hydraulics, pneumatics or vacuum integrated in the swivel table enable complex fixtures with different clamping sequences.
