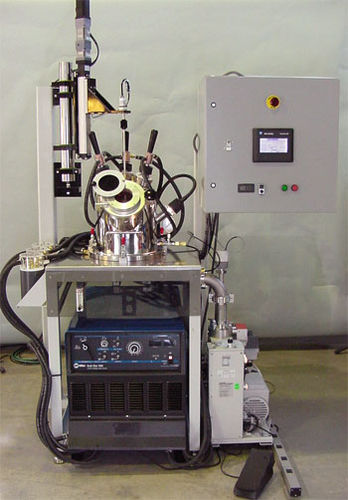

Bell furnace ABJ-900 Tri-Arc

meltingannealingcrystal growth

Tri-Arc Melt Furnace ABJ-900-3 is identical to our ABJ-900, which is our largest arc melting furnace with a 9″ (229mm) hearth. This furnace is capable of reaching temperatures above 3500°C instantly. The triple arc option allows for a more uniform melt and for larger batches to be processed without the need to unload and reload. Different materials can also be positioned in the different crucibles and can be melted simultaneously. The crystal growing option allows up to 4″ (100 mm) crystals to be pulled from a center crucible. The High vacuum system option allows for ultra pure melts when required. All components are operated through an intuitive optional touch panel screen. Custom cavity shapes are available at no cost, when specified with your order. General specifications: Three copper stingers with tungsten electrode. Large Bell Jar hinged loading configuration. Custom copper hearth plate 9.0” dia. (230mm dia.). Sight window with 4″ (102 mm) diameter viewport and separate port with halogen light. Power supply: 500 Amp @ 80% Duty Cycle, 22 kVA. Water cooling safety interlock. Inert gas system with relief valve. Pumping system with roughing pump, vacuum gauge and valve. Optional high vacuum and crystal puller system Details Chamber The chamber is constructed of stainless steel and electro-polished for good vacuum integrity and appearance. The chamber is double-walled. A water jacket surrounds the chamber and maintains a chamber temperature below 50°C (120F) during normal use. The chamber is rated for high vacuum vacuum to 10-6 Torr (mbar). The chamber is loaded and unloaded by lifting the hinged chamber backwards, which gives complete access to the loading area.
