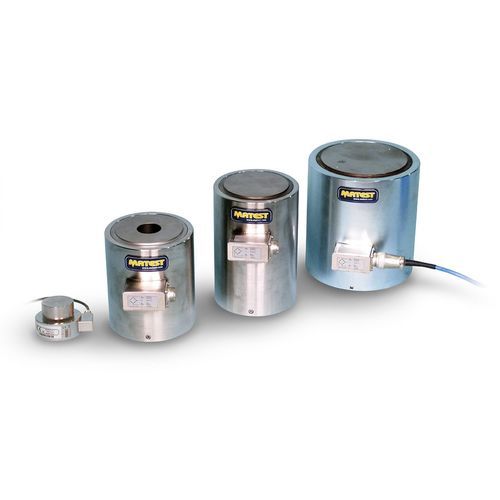

Compression load cell C140 series

button typecapacitivedigital

To be used with the C138M digital indicator for calibration of testing machines These load cells are suitable for the calibration of compression testing machines. They consist of a high quality steel block, named sensitive element, where some strains have been fitted: the whole is housed in a stainless steel sheathing. While the load is applied, strains are transmitted to an amplifier (mod C138M) which gives a load digital reading. Further advantages is the possibility to equip different load cells on the same measuring tester and therefore to check all load capacities. • Full Scale nominal output: 2 mV/V • Linearity + Hysteresis: ± 0.3% of full scale • Repeatability: ± 0.03% of full scale • CLASS: A Standard load cell for tensile calibration test on the universal machines H010, H011N and H011-01N. The load cell has to be connected to the digital tester mod. C138M.
