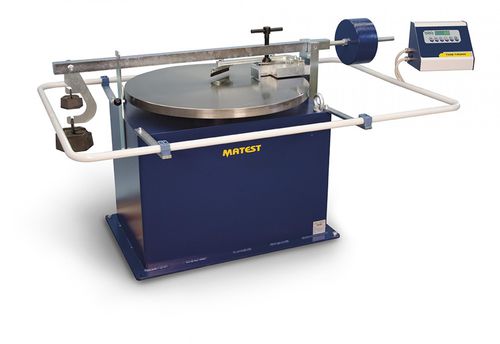

Abrasion tester C129

This instrument measures a volume loss in a specimen under abrasion test and it is used in tests such as: - paving stones - concrete slabs - slabs made of natural rocks - natural stone slabs The test is performed by positioning a specimen to be verified in a abrasion tester Böhme apparatus on the test track on which has been spread normalized abrasive; The grinding wheel is made rotate and the specimen submitted to the abrasive load of 294 N for a certain number of cycles. Before doing a test, establish the specimen’s bulk density by measuring weight and thickness. Perform the test for 16 cycles composed of 22 turn each, calculating at the end a worn as a average loss in volume and weight. The apparatus is basically composed of: - cast iron horizontal disc with a speed of 30 rpm and a diameter of 750mm furnished of a 200mm test track to position a specimen. - separate control panel with digital revolutions counter with automatic stop after preset revolutions - specimen’s holder - adjustable charger used to produce a force of 294 N ± 3 N on a specimen Power supply: 230V 50Hz 1ph 800W Dimension: 1500x1000xh850 mm Weight: 320 Kg approx.
