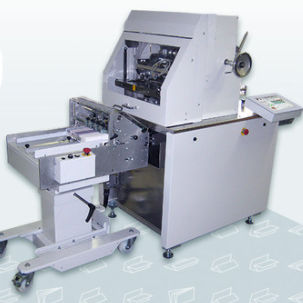

Paper folding machine leafletFOLDER NET 21

largeautomatic

Folding pharmaceutical inserts better: user-friendly operation, reliable reproducibility, high productivity. Packaging systems in the pharmaceutical and food industry are highly productive, versatile machines. Folding pharmaceutical inserts is just one of a large number of individual processes. Adjustments at the fold modules require special knowledge and are relatively time-consuming. With its pharmaceutical folder leafletFOLDER NET 21, MB Bäuerle offers for the first time a computer-controlled fold unit for this type of applications. Fields of application: Can be integrated into packaging and cartoning machines (online machine) or offline machine for pharmaceutical folds. The novel operating concept reduces walking distances around the machine and set-up times. Operators need no special know-how and can concentrate on other tasks. max. paper size - 216 x 320 mm max. special paper size - 216 x 600 mm min. paper size - 75 x 85 mm Stack height on feeder - 2,000 sheets (A4, 50 GSM) Speed - max. 500 cycles/min Proven, reliable feeder system Swivel-mounted feed table for good accessibility Easily removable leaflet transport module Reading track with large read area Driven by quiet and maintenance-free flat belts Suction drum principle with adjustable suctio segments Fold plate and deflector in one unit Production of multilayer, pre-folded inserts Maximum format length of 360 mm for gear ratio 1:1 Optional hold-down unit at feed table for maximum number of cycles
