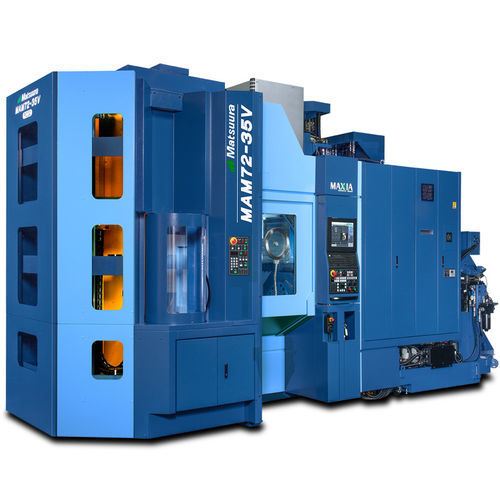

5-axis CNC machining center MAM72-35V

vertical250 tools60 tools

Direct Drive Linear Motors on the B / C axes assure faster operation. Indexing Time is Half Utilising Direct Drive Linear Motors on the B / C axes delivers faster operation and a reduction in non-cutting time. Moving at 50min-1 and 100min-1 respectively, these gearless & robust axes perform without noise and are maintenance and lubrication free for life. Workpiece and spindle accessibility Although the MAM72-35 is by its very design the ultimate machine tool for unmanned production, there is an obvious need to accommodate operator set up & maintenance access to the working enclosure and spindle. A larger access door and shorter distance to the working enclosure pallet and to the spindle place operator comfort the core of the new design. Control panel equipped with a large screen touch panel Our machining center is equipped with a new operating system that features a 15 inch touch panel. Complex 5-axes system operation is now interactive and can be performed more smoothly.
