Welding portable line boring machine LBM800X

facingmultifunctionuniversal

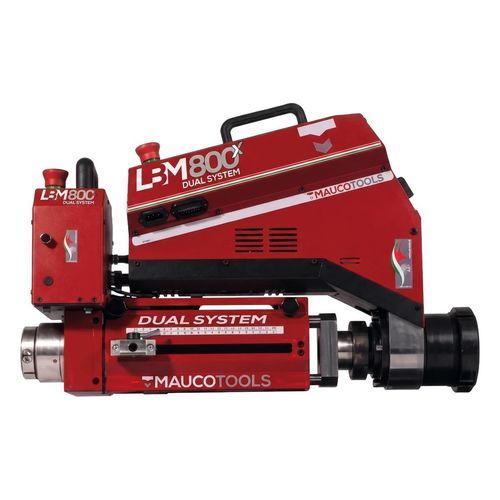

The LBM800X DUAL SYSTEM Portable Boring Machine represents the maximum evolution of our patented technology. Designed for the heaviest field interventions, it offers an enhanced 2300W motor with 4-speed gearbox for optimal torque management on large diameters up to Ø800mm.
The integrated DUAL SYSTEM allows simultaneous line boring and overlay welding operations, guaranteeing absolute stability even in the most extreme operating conditions.

• 2.3kW High Torque Electric and Hydraulic Motorization
• 4-Speed Mechanical Gearbox
• Patented Split Design

Technical data

• Line boring: Ø62–800 mm (Ø60 mm boring bar)
• Bore welding: internal Ø32–800 mm, external Ø22–800 mm
• Drilling and tapping: Ø10–45 mm
• Facing: optional with FK kit
• External turning: optional with KTE kit
• 2300 W electric motor, 4-speed mechanical gearbox, 30–630 rpm
• Hydraulic version: 5.5 kW
• Brushless electro-mechanical feed, 125 W
• Weights: rotation unit 27.5 kg, feed unit 21.5 kg

The ultimate solution for those who do not accept compromises. 2300W power and micrometric precision for your most ambitious projects up to 800mm.
