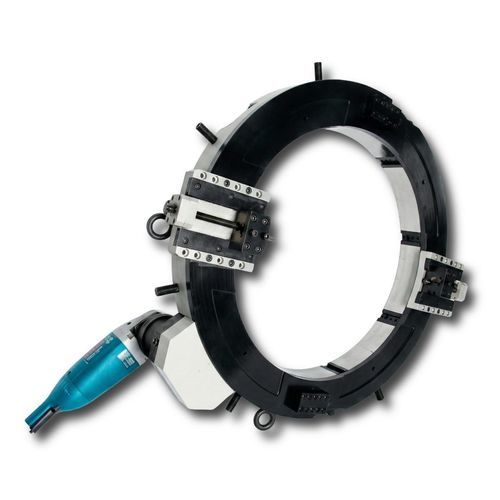

Orbital pipe cutting and beveling machine SFM-4860

portable

The SFM-4860 is the top-of-the-range solution for cold cutting on pipes from 48" to 60". Extreme power for the most demanding applications.
Designed for maximum dimensions with ultra-reinforced structure, ideal for high-capacity pipelines and offshore plants.

• Cut and bevel in a single operation on diameters up to 60". Installation on in-service pipes.
• Total elimination of rework costs. Mechanical cold cutting without HAZ on large diameters.
• Uniform cuts and bevels on pipes up to 60". Radiographic standards guaranteed.
• 3 versions available (Pneumatic, Electric, Hydraulic) for extreme offshore and onshore environments.

Technical data

• Versions: pneumatic, electric, hydraulic
• Clamping range: 1219–1524 mm (48"–60")
• No-load speed: 6 rpm (pneumatic, hydraulic) · 7 rpm (electric)
• Power: pneumatic 4.2 HP · electric 3.5 kW (2600 W) · hydraulic 7.5 HP (3-phase)
• Air pressure: 6.2 bar (90 psi)
• Net machine weight: 538 kg
• Tool holder weight: 13.4 kg
• Drive unit weight: pneumatic 16 kg · electric 23 kg · hydraulic 9 kg

Request a customized quote or download the complete SFM orbital pipe cutter catalog.
