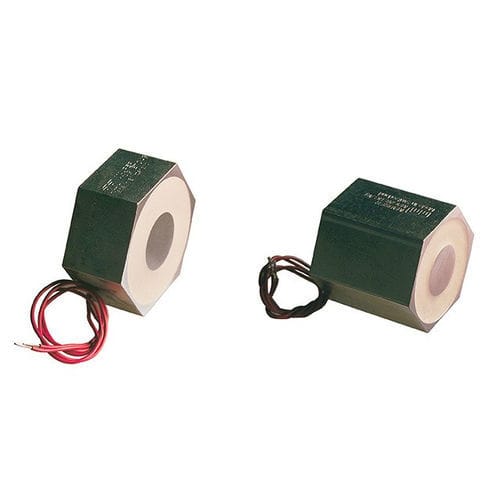

Compact solenoid ME series

24-voltDCpull

The honeycomb shaped pot magnets are particularly suitable as individual magnets.Joined together they lend themselves to the construction of compact magnetic plates. Shorter electromagnets (ME1030 ... ME1090) are used as adhesive magnets, and longer magnets (ME2030 ... ME2090) are preferred as pull-type electromagnets. The length of the electric connection wires is 290 mm. Insulation class: E Operating temperature: max. 80°C Operating factor [ED]: 100% Residual adhesive force: max. 5% of the pull force
