Electric actuator MZKU 90
lineartiming beltreinforced

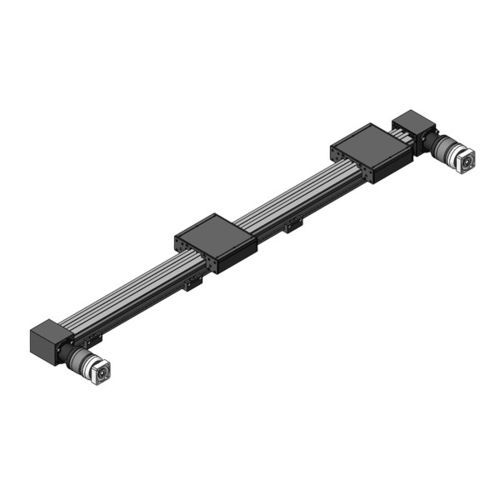

Electric actuator - MZKU 90 - Max - linear / timing belt / reinforced
Electric actuator - MZKU 90 - Max - linear / timing belt / reinforced
Electric actuator - MZKU 90 - Max - linear / timing belt / reinforced - image - 2
Add to favorites
Compare this product

Characteristics

Type
electric
Movement
linear
Technology
timing belt
Protection class
reinforced
Other characteristics
mechanical
Stroke

200 mm, 300 mm, 400 mm, 500 mm
(7.874 in, 11.811 in, 15.748 in, 19.685 in)

Pressure

375 bar, 500 bar, 550 bar, 700 bar
(5,438.92 psi, 7,251.89 psi, 7,977.08 psi, 10,152.64 psi)

Force

Max.: 8,500 N

Min.: 1,400 N

Torque

Max.: 1,000 Nm
(737.562 ft.lb)

Min.: 190 Nm
(140.137 ft.lb)

Description

Linear actuators with two independently driven carriages on one actuator profile. Linear actuators with timing belt drive at the head Our allrounder system provides high mechanical payload capacity and repeatability, long service life and freedom from maintenance. Options • increased dynamics • reinforced drive situation • partially or completely rustproof • explosion protection • different carriage lengths

Catalogs

Catalogue
Catalogue
37 Pages
