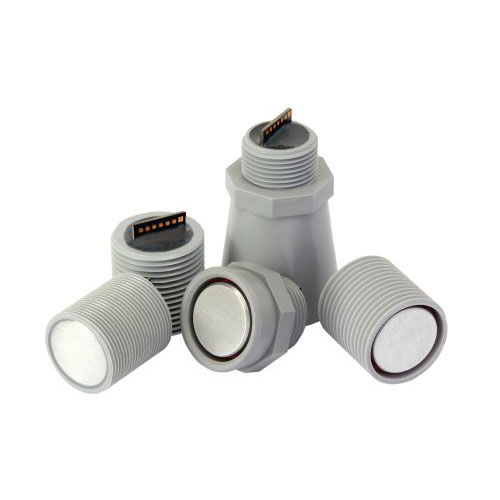

Ultrasonic sensor MB73XX HRXL-MaxSonar-WRXX series

The IP67 rated HRXL-MaxSonar-WR ultrasonic rangefinders offer 1mm resolution, 2.7-5.5VDC operation, a narrow beam pattern, high power output, noise rejection, automatic calibration, and temperature compensation. The output options for this ultrasonic sensor line are pulse-width, analog voltage, and a choice of asynchronous RS232 or TTL serial. Please see datasheet for full specifications. MB7360 HRXL-MaxSonar-WR Ranges from 300mm to 5000mm with a 7.5Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. MB7363 HRXL-MaxSonar-WRLS High sensitivity. Ranges from 500mm to 9999mm with 6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. MB7366 HRXL-MaxSonar-WRL Ranges from 500mm to 9999mm with a 6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. MB7368 HRXL-MaxSonar-WRML Ranges from 300mm to 9999mm with a 5.2Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to largest target. MB7369 HRXL-MaxSonar-WRM Ranges from 300mm to 5000mm with a 6.7Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to largest target. MB7375 HRXL-MaxSonar-WRB Wide beam. Ranges from 500mm to 1525mm with 6.33Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. MB7380 HRXL-MaxSonar-WRT Ranges from 300mm to 5000mm with a 7.5Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target. MB7383 HRXL-MaxSonar-WRLST High sensitivity. Ranges from 500mm to 9999mm with a 6Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
