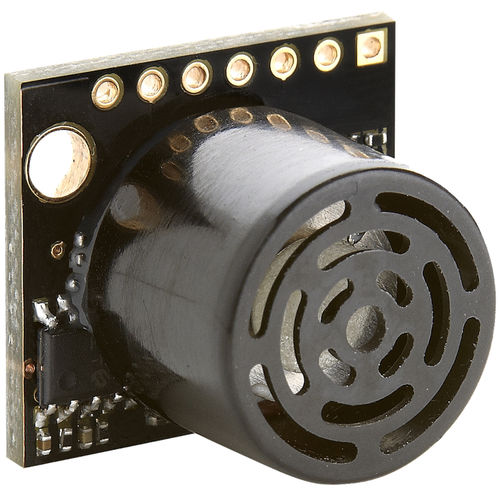

Ultrasonic sensor MB10X3 HRLV-MaxSonar-EZX series

HRLV-MaxSonar-EZ ultrasonic rangefinders offer 1mm resolution, 2.5-5.5VDC operation, temperature compensation, automatic calibration, high accuracy, and stable operation in multi-sensor environments. The output options for this ultrasonic sensor line are pulse-width, analog voltage, and a choice of asynchronous RS232 or TTL serial. Please see datasheet for full specifications. MB1003 HRLV-MaxSonar-EZ0 Ranges from 300mm to 5000mm with a 10Hz read rate. Widest detection field. Excellent for people detection. MB1013 HRLV-MaxSonar-EZ1 Ranges from 300mm to 5000mm with a 10Hz read rate. Wide detection field. Excellent for people detection. MB1023 HRLV-MaxSonar-EZ2 Ranges from 300mm to 5000mm with a 10Hz read rate. Mid-width detection field. Balance between sensitivity and side object detection. MB1033 HRLV-MaxSonar-EZ3 Ranges from 300mm to 5000mm with a 10Hz read rate. Narrow detection field. High noise tolerance. MB1043 HRLV-MaxSonar-EZ4 Ranges from 300mm to 5000mm with a 10Hz read rate. Narrowest detection field. Highest noise tolerance.
