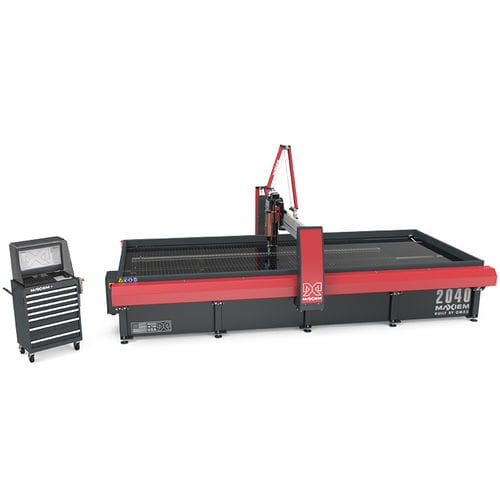

Abrasive water-jet cutting machine MAXIEM 2040
for steelfor titaniumfor composite materials

abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
Add to favorites
Compare this product


Characteristics

Technology
abrasive water-jet
Material
for steel, for titanium, for composite materials, for glass
Control type
CNC
Configuration
large-format, gantry type, 5-axis
Other characteristics
precision, 3D, mechanical, mobile, floor
X travel

4,216 mm (166 in)

Y travel

2,007 mm (79 in)

Cutting speed

12,700 mm/min (8.333 in/s)

Overall length

5,486 mm (216 in)

Height

2,692 mm (106 in)

Weight

2,495 kg (5,501 lb)

Description

The MAXIEM 2040 abrasive waterjet system is designed for shops with high-capacity production demands. ±0.003" (±0.076 mm) linear position accuracy Standard Features Backed by our exclusive IntelliMAX Standard Software Powerful all-in-one controller computer with large 23" screen Standard IntelliTRAX traction drive inside the X-Y Axis beams fully enclosed inside coated steel covers Standard programmable Motorized Z-Axis with a precision OMAX MAXJET 5i Nozzle boosts productivity and process efficiency Standard scissor-style hard plumbing OMAX Benefits Designed and manufactured at the OMAX factory in Kent, Washington, USA Does not create heat-affected zones or mechanical stresses Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics No tool changes & minimal fixturing dramatically reduce setup Service & Training 1 year of free training 1 year of free software upgrades 1-year / 2000-hour limited warranty Designed for shops with high capacity production demands, the MAXIEM 2040 abrasive waterjet system can easily machine almost any material, from steel and titanium to carbon fiber, composites, glass, and more. With the optional A-Jet 5-axis cutting head, you can achieve maximum productivity for your 3D machining needs. With the included IntelliVISOR System Monitoring aiding in scheduling maintenance downtime, your MAXIEM 2040 can remain at peak efficiency. Fastest cutting speeds and best precision compared to any competitive abrasive waterjet in the industry Backed by our exclusive IntelliMAX Software with real world cutting data Small, efficient footprint for minimal floor space utilization
