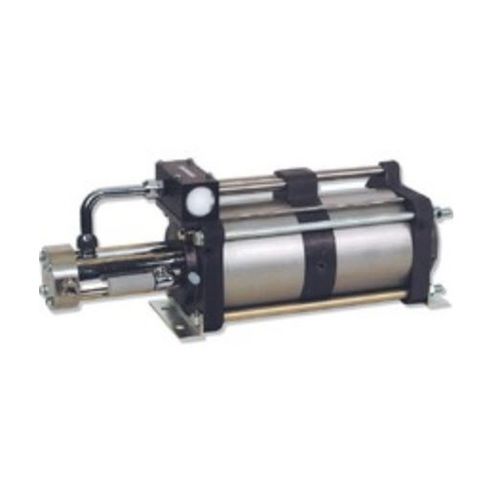

Piston pressure booster DLE 30-1-2
gasnitrogenoxygen

piston pressure booster
piston pressure booster
Add to favorites
Compare this product


Characteristics

Technology
piston
Media
gas, nitrogen, oxygen, helium
Lubrication
oil-free
Number of stages
multi-stage
Other characteristics
explosion-proof
Pressure

Max.: 600 bar
(8,702.3 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 130 l/min
(34 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Description

Pressure ratio - 1:60 Displacement volume (cm³) - 60,00 Displacement volume (in³) - 3,66 Gas Inlet Pressure pA max. (psi) - 8700 Gas Inlet Pressure pA min. (bar) - 20 Gas Inlet Pressure pA min. (psi) - 290 Formula to calculate gas outlet pressure pB - 60*pL Max. permitted outlet pressure (psi) - 8700 Air Drive Pressure min. (bar) - 1 Air Drive Pressure min. (psi) - 14.5 Air Drive Pressure max. (bar) - 10 Air Drive Pressure max. (psi) - 145 Weight (kg) - 20,00 Inlet (in) - 1/4 Outlet (in) - 1/4 Drive Air (in) - 3/4 Operating Temperature max. (°C) - 100 Height (mm) - 233,00 Depth (mm) - 181,00 Width (mm) - 615,00 Material of gas section - Stainless steel Gas Boosters The MAXIMATOR high pressure boosters are suitable for the oil free compression of gases and air. Industrial gases like Argon, Helium, Hydrogen and Nitrogen can be compressed to operating pressures of 2,100 bar (30,000 psi), Oxygen to 350 bar (5,075 psi). The MAXIMATOR high pressure boosters are suitable for the oil free compression of gases and air. Industrial gases like Argon, Helium, Hydrogen and Nitrogen can be compressed to operating pressures of 2,400 bar (36,000 psi), Oxygen to 350 bar (5,075 psi). Air driven boosters are an efficient alternative instead of electrically driven products and can be used in explosionproof areas .
