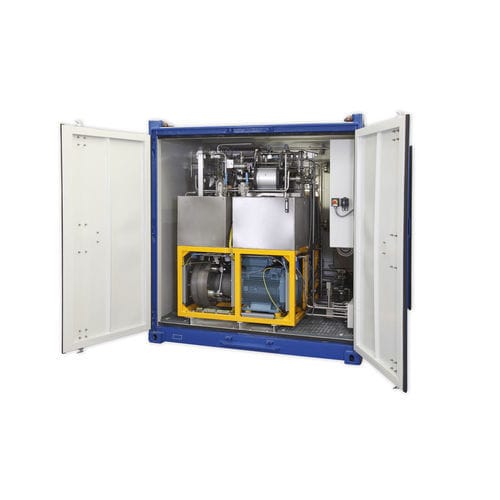

Electrically-powered hydraulic power unit

high-pressureoillow-pressure

Oil and Gas Technology - Hydraulic Power Units A clean hydraulic system is imperative for constant and precise valve performance in subsea production systems. Hydraulic Power Units (HPU) provides an optimised power supply – even for kilometre-long umbilical and subsea distributor stations. Installed on onshore and offshore platforms or FPSO vessels, the units secure the production operations. Maximator develops and produces Hydraulic Power Units for direct or multiplexed subsea production systems. Standard or customised Hydraulic Power Units are used for installation, for testing and for flushing applications. The Hydraulic Power Units work independently with pressure circuits for low-pressure from 200 to 350 bar and high-pressure from 700 bar to 1,050 bar. Redundant electric and pneumatic high-pressure pumps generate the pressure for the subsea operations. Cleanliness for durable components Depending on the required volume flow, we manufacture our Hydraulic Power Units with integrated or separate piston accumulator systems. Additional heating systems can be fitted for Arctic or harsh environments. Maximator Hydraulic Power Units have dual redundant filter systems with electrical clogging indicator. The Hydraulic Power Units have separate storage tanks for effective separation of clean and soiled fluids for the supply and return lines. Our installations ensure that the hydraulic systems achieve maximum purity (e.g. AS4059 D Class 6 B-F). This in turn increases the service life of all hydraulic components. With the embedded PLC, the Hydraulic Power Units work independently so that the operating effort by the user is low.
