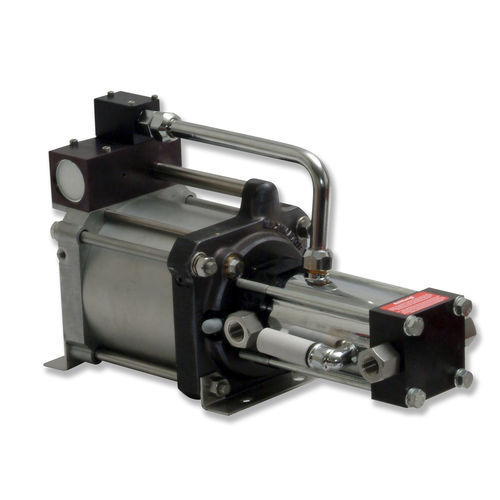

Piston pressure booster GPLV5

nitrogenairexplosion-proof

The PLV Air Amplifiers - GPLV Series - Designed for nitrogen or pressurized air compression. Ability to increase the '4 bar or 6 bar' normal pressures to the final pressures as per requirement. They come with a range of amplification ratios with the ability to operate with normal shop air. The air control unit with the different pressure ratios, makes it possible to preset the operating pressure per requirement. Material Provided: - An air control unit with a filter - Pressure gauge - Pressure regulator - Air shut-off valve All of the above can be provided with the entire range of PLV Air Amplifiers. Available Options: - Standard PLV Air Amplifier Station - Customized Amplifier MAXIMATOR Air Amplifier type GPLV: Offers individual consumers, the benefit of selected pressure boosting upstream. After attaining final pressure, zero consumption of energy. Electrical installation not needed. Type - GPLV5 Pressure ratio - 1:5 Noise level max. (dB(A)) - 79 Weight (kg) - 14,00 Inlet (in) - 1/2 Outlet (in) - 1/2 Drive Air (in) - 3/4 Operating Temperature max. (°C) - 60 Height (mm) - 271,00 Depth (mm) - 176,00 Width (mm) - 471,00
