oxygen mini booster / oil-free
ROB 22 (-HL)

Add to MyDirectIndustry favorites

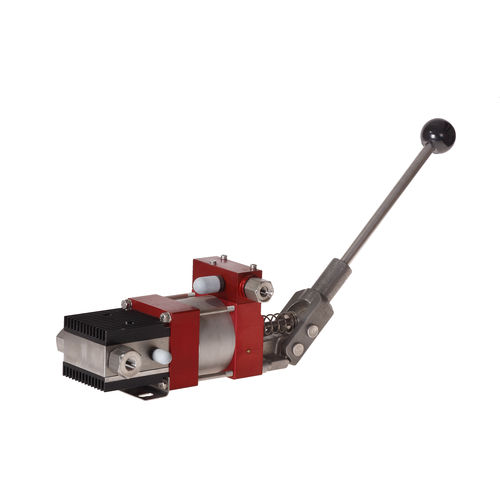

oxygen mini booster / oil-free oxygen mini booster / oil-free - ROB 22 (-HL)
{{requestButtons}}

Characteristics

  • Media:

    oxygen

  • Lubrication:

    oil-free

  • Pressure:

    Min.: 1 bar (15 psi)

    Max.: 280 bar (4,061 psi)

Description

The low price Booster is the entrance for an ambitious diver or a small group. As an option, this booster can be supplied with a manual handle (-HL Version) to top up bottles manually.

Average flow: 180 NL/min *
Drive source: Oilfree compressed air 1-10 bar
Inlet pressure: 50 to 280 bar
Max. outlet pressure: 280 bar
Pressure ratio: 1:28
Volume per stroke: 4,6 cm³
Temperature max.: 60°C
Weight: 3,7 Kg
Dimensions (H x D x W): 200mm x 116mm x 116mm
