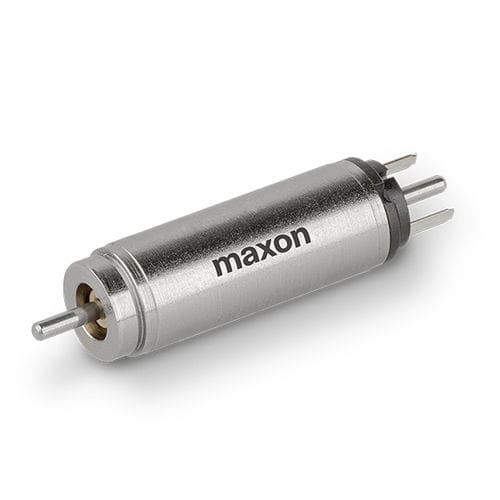

Brushed motor DCX 6 MDC3 Vultra-compact
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 3 V
- Configuration
- ultra-compact, small, ironless
- Protection class
- robust
- Number of poles
- single-pole
- Applications
- industrial
- Power
Max.: 0.56 W
(0 hp)Min.: 0.3 W
(0 hp)- Intensity
0.34 A
- Torque
0.0003 Nm
(0.000221 ft.lb)- Rotational speed
5,950 rpm
(37,384.9526 rad.min-1)Max.: 17,400 rpm
(109,327.4243 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
6 mm
(0.24 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
maxon DCX motors offer unrivaled power density (torque per volume) and absolutely quiet running. The robust engineering, combined with the globally patented ironless winding, make the DCX motors a highly dynamic drive for almost every application scenario.
The maxon range of ultra-compact DC motors is growing: With the DCX 6 (6 millimeters in diameter), the maxon X drives family gains a new member. The DCX 6 M is available as a small drive with ball bearings or sintered bearings. Like all motors in this group, he is easy to configure in the online shop: shop.maxonmotor.com
Other maxon products
DCX Program
