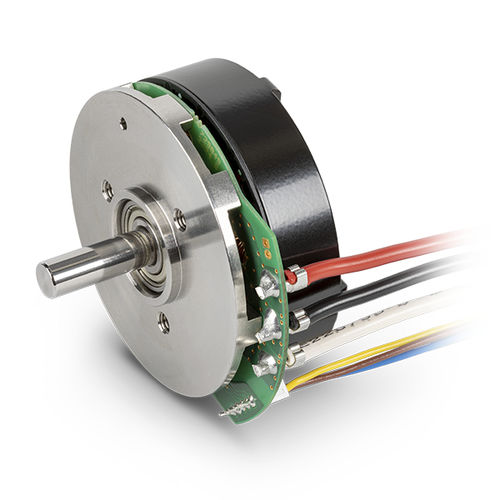

Brushless motor ECX FLAT 42 SDC24 Vflat
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- flat
- Number of poles
- 8-pole
- Applications
- for industrial applications
- Other characteristics
- with built-in encoder
- Intensity
2.16 A
- Rotational speed
Max.: 8,700 rpm
(54,663.7122 rad.min-1)Min.: 0 rpm
(0 rad.min-1)6,290 rpm
(39,521.2356 rad.min-1)- Diameter
42 mm
(1.65 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
The brushless ECX FLAT motor series is optimized for high torques. Innovative winding technology and high-performance magnets give the ECX FLAT a unique ratio of torque to size, making it ideal for applications involving confined spaces.
Other maxon products
EC flat Program
