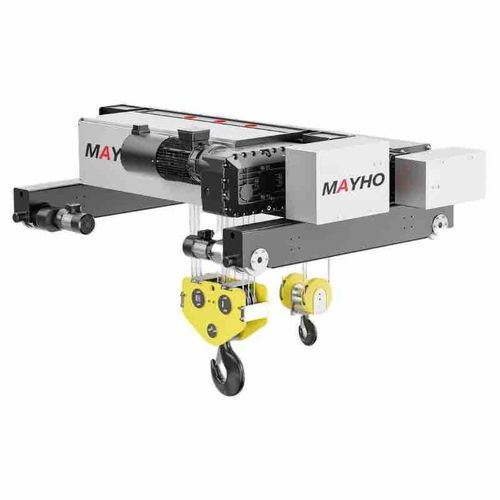

Electric cable hoist synchronizeddouble2
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Other characteristics
- double, synchronized
- Number of strands
- 2
- Capacity
5,000 kg, 10,000 kg, 20,000 kg, 32,000 kg, 50,000 kg
(11,023.11 lb, 22,046.23 lb, 44,092.45 lb, 70,547.92 lb, 110,231.13 lb)- Lifting height
Max.: 1,000 m
(3280'10" )Min.: 0 m
(0'00" )- Speed
Max.: 20 m/min
Min.: 5 m/min
- Lifting speed
Max.: 5 m/min
Min.: 0.83 m/min
- Power
Max.: 38 kW
(51.67 hp)Min.: 0.45 kW
(0.61 hp)- Weight
Max.: 3,639 kg
(8,022.62 lb)Min.: 495 kg
(1,091.29 lb)
Description
Product introduction
Product parameters
Technical specifications
- Compact design to minimize installation footprint
- Flexible capacity combinations: 50/20T, 32/10T, 20/5T
- Customizable hook spacing for various lifting tasks
- Supports single-hook operation or synchronized double-hook lifting
Product parameters
- Technical parameter sheet available as a product image on the page (contains detailed dimensional and capacity tables)
Technical specifications
- Wire rope electric hoist with two hooks and independent or synchronized control
- Capacity configurations: 50/20T, 32/10T, 20/5T
- Adjustable hook distance to accommodate different load geometries
- Designed for integration into cranes and lifting systems
