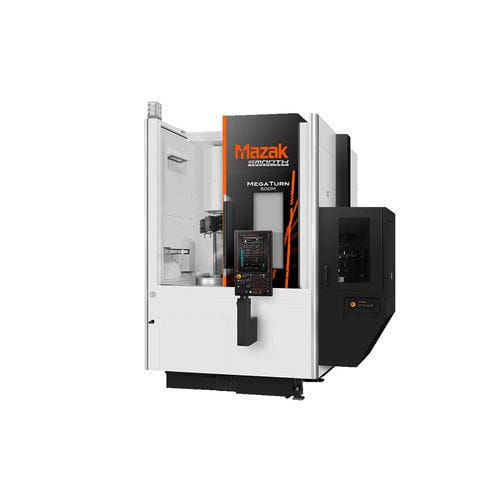

CNC turning center MEGA TURN

vertical2-axis12 tools

Automatic tool changer for further improvement of productivity Large machining area Symmetrical machines can be lined up to build an efficient line Unique design for large machining area Adopts a column travelling design which eliminates limits of machining diameter based on machine structure. The travelling column design has been adopted instead of cross rail design that interferes with the workpiece and turret. This leads to eliminating limitations of the machining diameter caused by the machine structure, allowing for a large machining area. Equipped with a highly-rigid, high-torque turning spindle High-rigidity headstock for machining heavy workpieces Material removal rate: 960 cm³/min Material: S45C / Spindle speed: 80 min-1 / Feed rate: 0.8 mm/rev / Depth of cut: 8 mm Process integration by high-speed turret lathe and milling performance The turret is rigidly clamped by a high-index coupling for high-performance machining including intermittent cutting. Tool interference with the workpiece by adjacent tools is minimised, enabling stress-free tool setup. Milling performance for process integration The MEGA TURN series can combine turning and secondary machining operations for large workpieces such as those found in the construction, aerospace, and other industries. This contributes to greatly reducing production lead time. To eliminate the reduction in the number of tools due to interference between the boring tool and the workpiece, we have developed an unique automatic tool changer.
