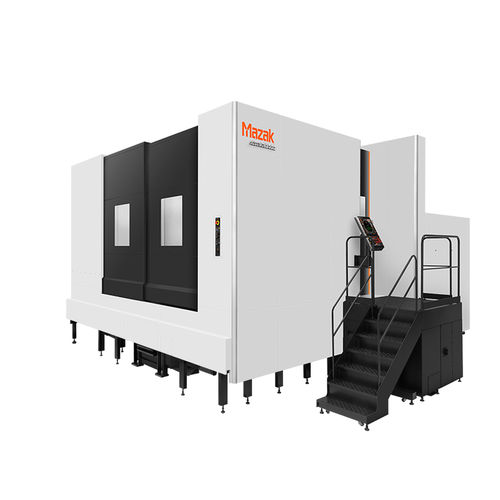

3-axis CNC machining center HCN-Q

horizontaldouble-columnwith rotary table

Deep boring of large workpieces Rigid machine structure for heavy-duty machining Designed for high-speed and high-accuracy performance Capable of boring deep, large-diameter holes in large parts up to 10 tonnes Quill spindle for higher machining efficiency Spindle bearing inside diameter Φ180 mm. The multiple-row front spindle bearings provide the rigidity required for heavy duty machining. Quill diameter Φ130 mm / core cooling available (option) High-output, high-torque gearless built-in motor spindle (standard equipment) Rigid base, column and high accuracy linear guides Y-axis twin ball screw The spindle head is driven by 2 ball screws in the Y-axis. Vibration is minimised to ensure accuracy stability during high-speed machining. Linear roller guides utilised on all axes Linear roller guides on the X-, Y- and Z-axis are utilised by the HCN-Q series in order to provide high-accuracy and heavy duty machining. Variety of Attachment* Optional automatic attachment changer increases parts processing flexibility through the use of various special operation attachments *Compatible with HCN-12500Q, 16000Q, 16800Q (optional) Automation systems available from single machine to a large-scale system The 2-pallet changer allows the unloading of a finished workpiece and the loading of the next workpiece during the machining of the current workpiece. It can handle heavy workpieces, and its stable, long-term operation improves productivity. PALLETECH SYSTEM* This automated system makes it possible to achieve long-term unmanned operation of large workpieces, significantly shortening lead times.
