Crusher bucket BF150.10
for excavators

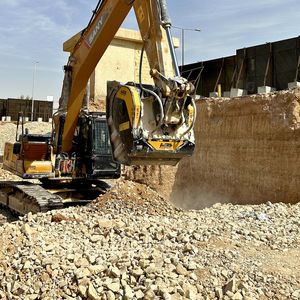

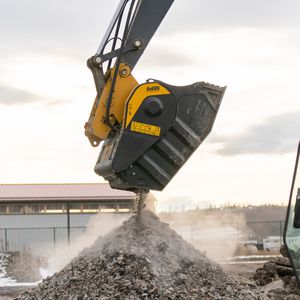

Crusher bucket - BF150.10 - MB Crusher - for excavators
Crusher bucket - BF150.10 - MB Crusher - for excavators
Crusher bucket - BF150.10 - MB Crusher - for excavators - image - 2
Crusher bucket - BF150.10 - MB Crusher - for excavators - image - 3
Crusher bucket - BF150.10 - MB Crusher - for excavators - image - 4
Crusher bucket - BF150.10 - MB Crusher - for excavators - image - 5
Add to favorites
Compare this product
Go to the MB Crusher website for more information

Characteristics

Type
crusher
Load-bearing
for excavators
Carrier weight

Max.: 100 t
(110 us ton)

Min.: 70 t
(77 us ton)

Bucket width

2,130 mm
(84 in)

Capacity

2.3 m³
(81.22 ft³)

Bucket weight

11.5 t
(12.68 us ton)

Screening / crushing size

Max.: 200 mm
(8 in)

Min.: 110 mm
(4 in)

Hydraulic flow

Max.: 430 l/min
(113.59 us gal/min)

Min.: 380 l/min
(100.39 us gal/min)

Hydraulic pressure

Max.: 280 bar
(4,061.06 psi)

230 bar
(3,335.87 psi)

Min.: 230 bar
(3,335.87 psi)

Description

SPECIFICATIONS Recommended excavator ton 70 - 100 Weight ton 11,5 Load capacity m³ 2.3 Pressure bar 230 - 280 Back pressure bar < 10 Oil flow rate* l/min 380 - 430 Mouth width mm 1450 Mouth height mm 700 Size A mm 2130 Size B mm 3600 Size C mm 2170 * The minimum hydraulic flow rate value must be alongside the required operating pressure. OPTIONAL ACCESSORIES Hour meter 24 Month Warranty APPLICATION AREAS Road works Quarry Mines Pipelines
