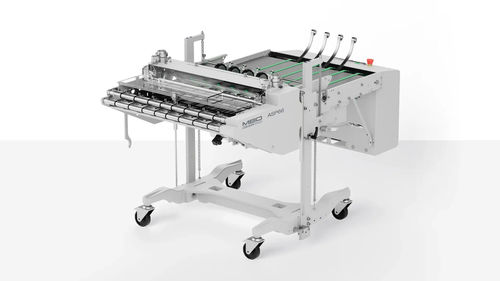

Automatic stacker ASP series

vertical

Mobile and height-adjustable stream delivery with integrated pressing station, ideal for small to medium circulations. Due to the low marking risk well suited for sensitive and freshly printed products. MBO ASP deliveries are easy to handle, clearly arranged and may be readjusted quickly and comfortably. These features make them predestined for frequent changeovers of production lines or for the application with fully automatic folding machines where the position of the delivery is often changed. The integrated pressing unit with its pre and main pressing rollers renders a good delivery quality for the destacking and further processing of the sheets. By means of two separate, smoothly adjustable drives for the infeed table/pressing unit and the collating/collecting belts the delivery stream is compacted, thus ensuring a large holding capacity. Equipped with a collector table extended by 50 cm, ASP 66 L-2 ME provides an even larger holding capacity. To facilitate loading, the marking device allows the shifting in package of a preselectable number of products by 2 cm – with the shifting regulated via a light barrier and counter, which allows the products to be exactly counted and packed when running productions for finished products. Loading is further facilitated by the spreading of multiple-up streams by round belts diverging angularly outward. Thanks to the option to use the built-in controller, application is also possible with older machines or machines from external suppliers. By default, ASP deliveries are equipped for two-ups, however, may be extended to three-ups. ASP 82-2 ME may even be extended to four-up production.
