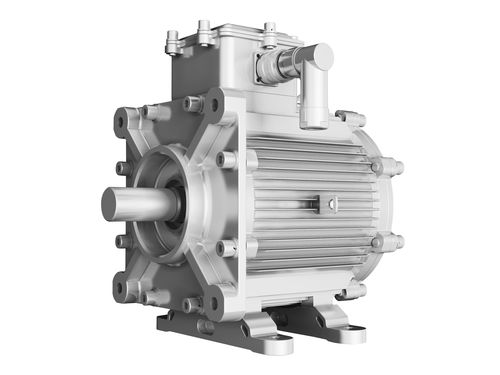

Brushless motor SRPM290L8F55three-phase380 Vsmall
Add to favorites
Compare this product
Characteristics
- Type
- brushless, three-phase
- Voltage
- 380 V
- Configuration
- small
- Protection class
- IP54
- Number of poles
- 8-pole
- Cooling mechanism
- air-cooled
- Applications
- for compressors, industrial
- Other characteristics
- low-noise, high-efficiency, high-torque, high-power, low-vibration, low-speed
- Power
55 kW
(74.78 hp)- Torque
210.1 Nm
(154.961808 ft.lb)- Rotational speed
2,500 rpm
(15,707.9633 rad.min-1)
Description
Product Feature
1.Suitable for the 2500rpm rated speed
2.High power & high torque
3.High efficiency
4.Small size
5.Low noise low vibration
6.Patented cooling structure
7.Easy maintenance and long life time
8.Durable, reliable
Specifications
Model type: SRPM290L8F55
Voltage: 380V AC
Rated Power: 55KW
Rate Torque : 210.1N.m
Rated Speed: 2500rpm
Efficiency:95.5%
Isolation: H/F
Water/Dust Proof: IP54
N Weight: around 172KG
Duty Type:S1
Pole:8
Cooling Method: air cooling
Installation Method: B35
Application
Many industrial usage（compressor,pump,blower,air knife,spray dryer etc.)
Other MC MOTOR TECHNOLOGY CO., LTD products
50~100kW motor--Widely industrial used
