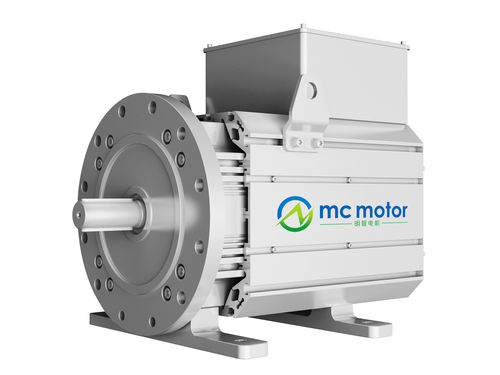

Brushless motor SRPM155M812three-phase380 Vsmall
Add to favorites
Compare this product
Characteristics
- Type
- brushless, three-phase
- Voltage
- 380 V
- Configuration
- small, compact
- Protection class
- IP54, IP67
- Number of poles
- 8-pole
- Cooling mechanism
- air-cooled
- Applications
- for pump, blower, for compressors, industrial, for dryers, for battery-powered systems
- Other characteristics
- high-torque, high-efficiency, high-power, low-noise, high-speed, low-vibration, with frequency converter
- Power
12 kW
(16.32 hp)- Torque
11.5 Nm
(8.481965 ft.lb)- Rotational speed
10,000 rpm
(62,831.8531 rad.min-1)
Description
Product Feature
1.Suitable for the 10000rpm rated speed
2.High power & high torque
3.High efficiency
4.Small size
5.Low noise low vibration
6.Patented cooling structure
7.Easy maintenance and long life time
8.Durable, reliable
Specifications
Model type: SRPM155M812
Voltage: 380V AC
Rated Power: 12KW
Rated Torque : 11.5 N.m
Rated speed: 10000rpm
Isolation: H/F
Water/dust Proof: IP54(IP67 option)
Cooling Method: air
Installation Method: B35
Application
Many industrial usage（compressor,pump,blower,air knife,spray dryer etc.)
Other MC MOTOR TECHNOLOGY CO., LTD products
0~50KW motor--Widely industrial used
