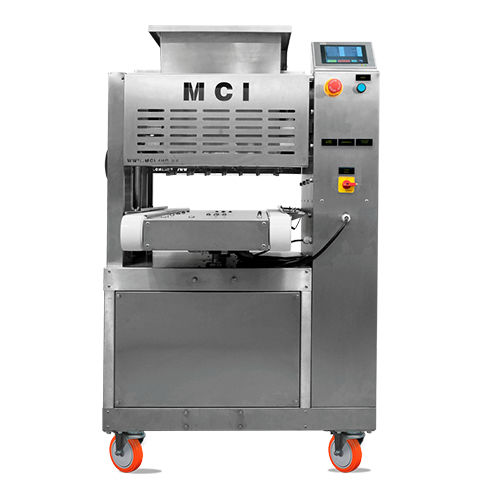

The automatic M2F Doser, doses and fills products of various consistencies. It has a system of rollers and accessories that provide a diversity of products.
Functionality
Dosing, turning, cutting and lobe module.
*The lobe module is a separately purchased item.
Maximum volumetric capacity
Roller bucket: 25 kg and lobe bucket: 21 kg of product.
*The volumetric capacity is variable according to the density of the dough. The lobe bucket is an option purchased separately.
Products per hour
8.000 units per hour
*Products up to 20g (0.71 oz). Production may vary according to the density of the product.
Capacity production
160 kg (352 lbs) of products/h
*Production may vary according to dough density
Maximum capacity of the wire cutting
8.000 products/h (up to 0.71 oz) or 160 kg (352 lbs) of products/h
*Production may vary according to dough density
Maximum capacity of dosing mode
8.000 products/h (up to 0.71 oz) or 64 to 80 kg (141 to 176 lbs) of products/h
*Production may vary according to dough density
Maximum capacity of rotating mode
2.400 products/h (up to 0.71 oz) or 64 to 80 kg (141 to 176 lbs) o produtcs/h
*Production may vary according to dough density
Accessories that come with
Dosing rule D6 (code 47000), rotating rule (code 46805), cutting rule (code 46808).
*As régua acompanham bicos e blocos para compor o conjunto. Consulte informações técnicas com nossos vendedores.
Optional accessories
We offer cutter block, dosing disc, bucket, rulers and special lobe nozzle formats to compose and diversify your production. See available formats.
