Bulk material separator ALK

magnetic gratefor production linesgrid

Description

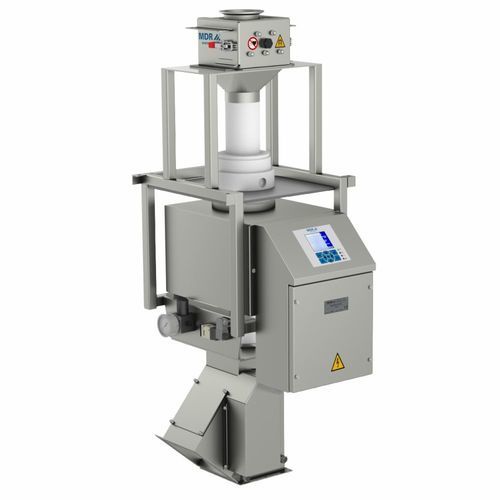

Vertical metal detector with integrated magnetic grid and Automatic Ejection System (AES) designed for inspection and separation of ferromagnetic contaminants in bulk, granular and powder products within high-flow tubing and vertical packing lines. The product passes first through the magnetic grid to extract micron-sized ferromagnetic metals and oxides, then through the metal detector sensor; on detection, the AES removes contaminated product.

Additional information
The ALK separator is an upgrade of the CKDE pipeline metal detector and offers:

• separation of micron-sized ferromagnetic metal particles via the integrated magnetic grid
• automatic ejection of detected contaminated product using AES
• suitable for high-flow tubing and vertical packing lines
• design facilitating routine cleaning and maintenance

Sketch and table
Sketch and dimensional/technical table are provided as images on the product page.

Caractéristiques / spécifications techniques

• Product type: Vertical metal detector with integrated magnetic grid and Automatic Ejection System (AES)
• Intended use: Inspection of bulk, granular and powder products in high-flow tubing and piping; suitable for vertical packing lines
• Contaminant removal: Integrated magnetic grid extracts micron-sized ferromagnetic metals and oxides
• Detection: Metal detector sensor detects contaminants after magnetic separation
• Ejection: Automatic Ejection System (AES) activates to remove contaminated product
• Upgrade information: ALK is an upgrade of the CKDE pipeline metal detector
• Maintenance: Designed for easy cleaning and routine maintenance
