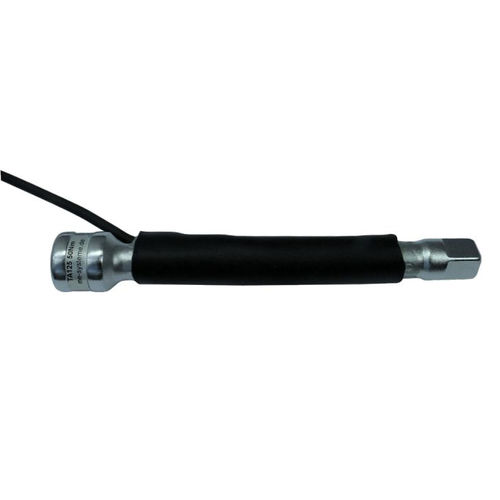

Static torque sensor TA125with square connection
Add to favorites
Compare this product
Characteristics
- Type
- static
- Configuration
- with square connection
- Torque
15 Nm, 50 Nm, 120 Nm, 350 Nm, 600 Nm
(11.06 ft.lb, 36.88 ft.lb, 88.51 ft.lb, 258.15 ft.lb, 442.54 ft.lb)
Description
type: torque sensor;
accuracy class: 1 %;
dimensions: 101,5 mm x Ø12 mm...200 mm x Ø43 mm;
extension 101,5 mm, outer and inner square 1/4'...200 mm, outer and inner square 3/4''';
connection: 3 m ME-SYSTEME.DE / 24-4 PUR / LAPP FD CP Plus 4x0,14;
material: tool steel;
weight: x g;
