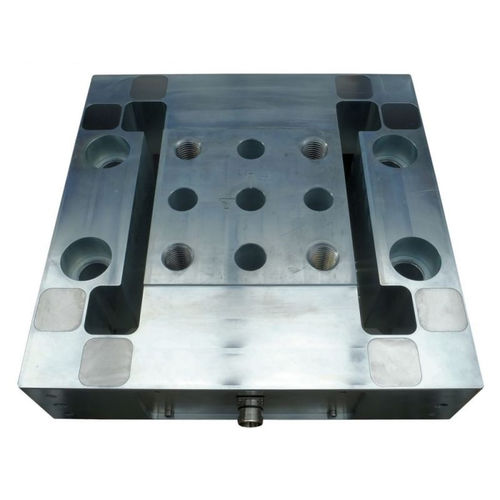

Tension/compression load cell K3D400block type3-axis
Add to favorites
Compare this product
Characteristics
- Type
- tension/compression
- Form
- block type
- Number of axes
- 3-axis
- Rated force
500 kN
Description
type: 3-axis-force sensor;
nominal force: Fx: 500 kN, Fy: 500 kN, Fz: 500 kN;
accuracy class: 0.5 %;
dimensions: 400 mm x 400 mm x 100 mm;
force transmission: 4 x female screw thread M30x3;
connection: M23 round plug 12-pole;
weight: 120 kg;
