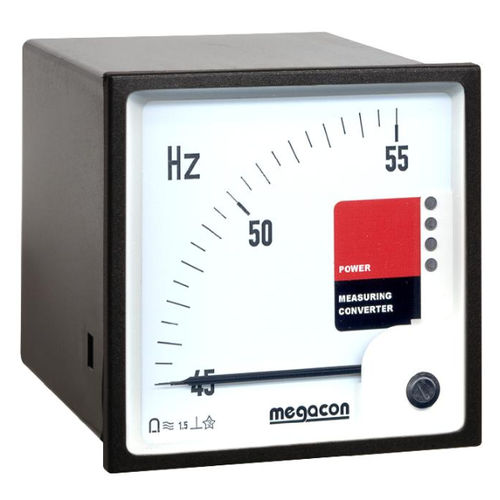

Frequency transducer MPFE Series

MPFE - INDICATING FREQUENCY TRANSDUCER - CLASS 0,5 (standard type) Single Phase True RMS Frequency Transducer, not affected by any waveform distortion Ranges 45-55, 55-65 and 45-65Hz Fast analogue output (<50mS) MPFE is to be used in system that requires fast response and monitoring of frequency. Ideal for regulation and control system that controls the frequency on generators, motors and inverters. The MPFE is a precision power frequency measuring transducer for AC voltage input. The unit has ONE very fast response analogue output signal, proportional to the measured frequency level. The analogue output is isolated from voltage inputs and auxiliary power. The unit meets EN 61010-1 Cat. III, Pollution degree 2 and the relevant environmental and EMC tests specified in EN 61326-2-4 to comply with the requirements of the major Classification Societies.
