Open frame power supply EPS-45S series
1U2"x3" formatAC/DC

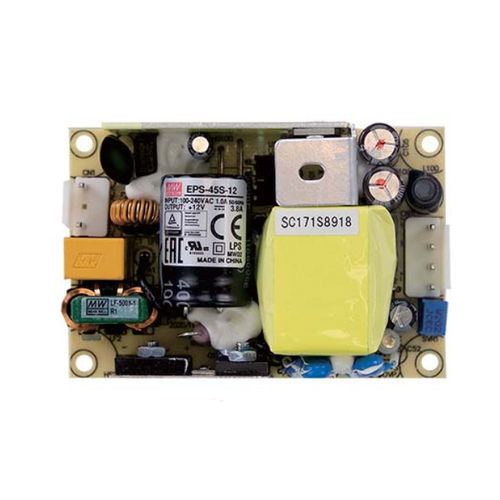

Open frame power supply - EPS-45S series - Mean Well - 1U / 2"x3" format / AC/DC
Open frame power supply - EPS-45S series - Mean Well - 1U / 2"x3" format / AC/DC
Open frame power supply - EPS-45S series - Mean Well - 1U / 2"x3" format / AC/DC - image - 2
Add to favorites
Compare this product

Characteristics

Mounting / format
open frame, 1U, 2"x3" format
Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overload protection
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for automation, for electrical networks
Other characteristics
compact
Input voltage

Max.: 264 V

Min.: 80 V

Output voltage

Max.: 48 V

Min.: 3.3 V

Current

Max.: 8.8 A

Min.: 0 A

Power

Max.: 45.6 W

Min.: 26.4 W

Description

EPS-45S is a 45W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-45S is able to be used for Class (no FG) system design.

Catalogs

No catalogs are available for this product.

See all of Mean Well‘s catalogs
