AC/DC power supply UHP-200 series
single-outputswitchingwith short-circuit protection

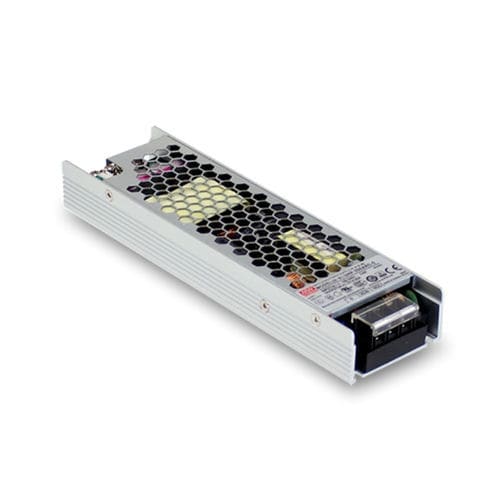

AC/DC power supply - UHP-200 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - UHP-200 series - Mean Well - single-output / switching / with short-circuit protection
Add to favorites
Compare this product

Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overload protection
Certifications
CE, TUV
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for automation, for electrical networks
Other characteristics
with power factor correction, high-voltage, high-performance, redundant, low-profile
Input voltage

Min.: 90 V

Max.: 264 V

Output voltage

Min.: 3.3 V

Max.: 55 V

Current

Min.: 3.6 A

Max.: 40 A

Power

Min.: 132 W

Max.: 201.6 W

Description

UHP-200 sériés is a 200W single-output slim type power supply with 26mm of low profile design. Adopting the full range 90~264VAC input, the entire sériés provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V,48V and 55V . In addition to the high efficiency up to 94%, that the whole sériés opérâtes from -3CTC ~ 7OC under air convection without fan. UHP-200 has the complété protection functions and 5G anti-vibration capability;lt is complied with the international safety régulations such as TUV BS EN/EN62368-1 ,BS EN/EN60335-1 ,UL 62368-1 and GB 4943.1. UHP-200 sériés serves as a high performance power supply solution for various industrial applications. Withstand 300VAC surge input for 5 seconds -30~+70t working température Over voltage / Over température DC OK active signal and redundant function(option) Operating altitude up to 5000 meter (Note.5) LED indicator for power on ■ Applications • Household appliances • Power Source Equipment for PoE(55V model)
