Abrasive water-jet cutting machine WAZER©
for titaniumfor aluminumslate

Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 2
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 3
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 4
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 5
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 6
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 7
Abrasive water-jet cutting machine - WAZER© - MECANUMERIC - for titanium / for aluminum / slate - image - 8
Add to favorites
Compare this product

Characteristics

Technology
abrasive water-jet
Material
for titanium, for aluminum, slate, for stainless steel, for steel, for composite materials, for carbon steel, for copper, for brass, for iron, for plastics, for marble, for granite
Product handled
sheet metal, sheet
Control type
CNC
Applications
for aeronautical applications, for industrial applications, for the automotive industry, for the electronics industry, for medical applications, for processing industry, for industrial vehicles, laboratory, for the aerospace industry, for the plastics industry, for process industry
Workpiece loading
manual loading
Phase
single-phase
Configuration
compact, bridge, single-head, with fixed table, bench-top, 3-axis
Other characteristics
automatic, CE, economical
X travel

305 mm
(12.01 in)

Y travel

460 mm
(18.11 in)

Z travel

25 mm
(1 in)

Operating pressure

Max.: 593 bar
(8,600.74 psi)

Min.: 5 bar
(72.52 psi)

Overall length

856 mm
(34 in)

Maximum width

648 mm
(26 in)

Height

551 mm, 1,220 mm, 1,400 mm
(22 in, 48 in, 55 in)

Weight

50 kg, 170 kg, 180 kg, 360 kg
(110.23 lb, 374.79 lb, 396.83 lb, 793.66 lb)

Power supply

230 V

Description

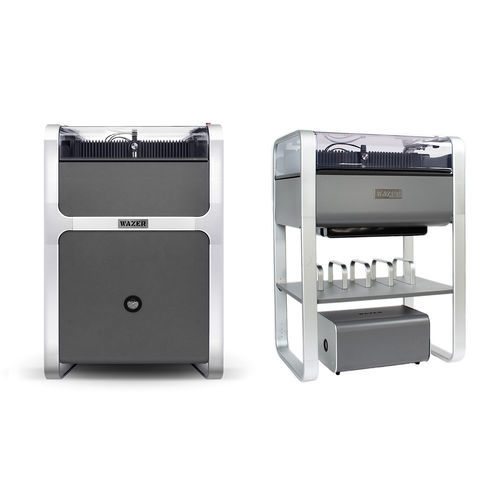

Mecanumeric is expanding its range of MECAJET, LABJET, QUICKJET and PUREJET water-jet cutting machines with the distribution in Europe and Africa of the WAZER© brand, the reference for low-cost prototyping and small series production machine. Designed for professional quality cutting in a small footprint, the WAZER© waterjet cutting machine is ideal for abrasive cutting of a wide variety of materials: Metal: steel, aluminium, copper, bronze, titanium, etc. Plastics and derivatives Rubber and derivatives Composite materials: carbon fiber, fiberglass, garolite, etc. Foams of all densities Glass Stone: marble, granite, slate, ceramic, porcelain, etc. The WAZER range is ideal for prototyping, small series production, parts for testing and control... STRENGHTS For all workshops: The WAZER is perfectly suited for use in schools, in design offices, in factories for production and quality control. Easy installation: All you need is an electrical socket and a water inlet and outlet Small footprint (integrated pump into the PRO version or pump under the machine for the STANDUP version) Available with or without machine support Installation, use and maintenance procedure online Intuitive use in 3 easy steps Customized software: Cloud software accessible directly from your computer, Compatible with your .dxf and .svg files Large library of materials and thicknesses
