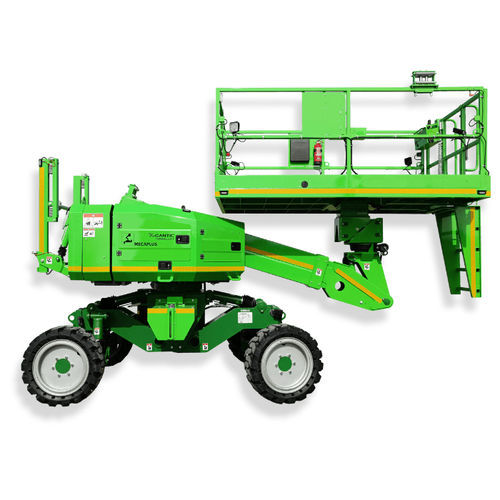

Tunnel lift platform ME10SL

wheeledbattery-powereddiesel engine

Working outreach 5'9m Maximum admissible slope 10º cross axis / 10º longitudinal axis ME10SL self-levelling platform is specially designed and developed for use in tunnels. It has multiple functions specifically for tunnel work. The chassis is self-levelling with Mecaplús I.A.D.R. technology. Dynamic levelling with the articulated arm in any position up to 9.9 m height. It provides a dynamic and controlled response of the machine axles to avoid the three-wheel effect, with the articulated arm in any position up to 9.9 m high. Standard features - Self-levelling chassis up to 10° tilt in both directions, also diagonally - Pivotable work platform -90º +90 - Large service door for loading in to the basket with a forklift - Rexroth radial piston motor MCR-F - Emergency system to lowering the boom - Kubota engine that meets the latest emissions requeriments Stage V - Tool box in the basket ME10SL Options - Option : ECO Bi fuel - Generator 3.5kw 220v - Battery box - Boom movement limiting key - Fire extinguishers and fire blanket - Towing ball - Coil holders - Anti Crushing: An alarm activated by ultrasonic sensors in the basket warns us when the distance to a surface is too short. - Additional air filter for maximum protection of the engine - Protective bellows on all hydraulic cylinders - Powerful oil cooler for hydraulic oil - LED storbe light 4x led orange R65 R10 - Work light - Driving light LED Worklamp 16x LED Square - Removable cable pulley on the basket - 2 extra tool box on basket - Liner roll holder Automatic extinguishing system Cable roller motorized Interchangeable lithium battery Converter 48V CC to 230V CA
