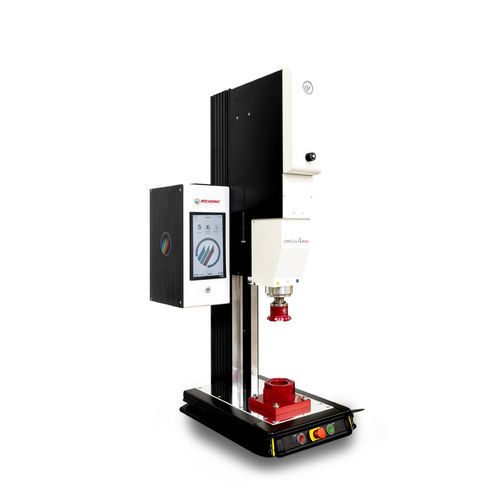

Friction welding machine Omega 4 RI 115

PLC-controlledfor integrationbenchtop

The OMEGA 4 RI 115 welding device ensures precision, tight sealing and high mechanical resistance in thermoplastic and technopolymer assembly. It complies with Industry 4.0 criteria. Description This welding device has the most complete control, analysis and management features on the market and offers various production line integration possibilities. The Omega 4 RI 115 spin welder can easily assemble plastic parts thanks to its 6 welding modes and 12 programmable welding steps. The spin welding process is recommended for parts having circular parting lines. The friction generated allows a good quality weld, a good seal and a clear reduction of the scrape rate. The Omega 4 RI 115 meets Industry 4.0 criteria. Highly communicative, with its 2 USB ports and its Ethernet connectivity, the device contributes to the lean manufacturing and data management. Characteristics • Stroke: 200 mm • Adjustable module height on 250 mm • Diameter of air cylinder: 63 mm • Intuitive interface with colour touch screen 10’’ • Safety by integrated PLC • Weight: 130 kg • Maximum size: 1 234 x 672 x 560 mm Uses • Automotive sector • Cosmetics • Medical • Leisure • Packaging
