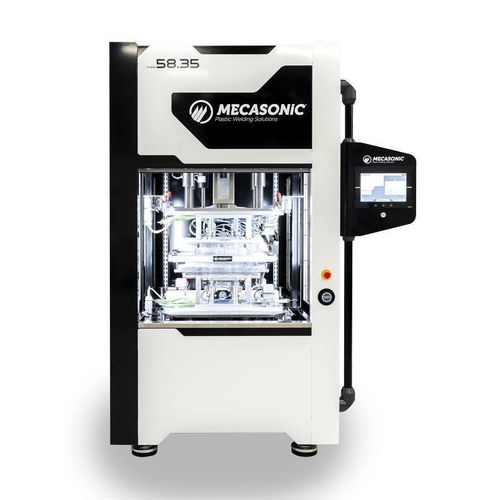

Hot plate welding machine FUSION 58.35EPLC-controlled400V three-phasewith touch screen
Add to favorites
Compare this product
Characteristics
- Technique
- hot plate
- Operational mode
- PLC-controlled
- Power supply
- 400V three-phase
- Other characteristics
- electric, programmable, with touch screen, 3-axis
Description
Description
The FUSION 58.35E electric hot-plate welding machine, with its sleek graphic design, delivers welds with outstanding quality and repeatability. It enables assembly of large, flat and complex-shaped thermoplastic parts and produces watertight, high-strength weld joints without added material.
Main features
Applications
The FUSION 58.35E is suited to plastics manufacturers seeking simple, robust assembly solutions.
Partial list of examples of hot plate welded parts
Automotive parts; battery housings; windscreen washer fluid, engine coolant and AdBlue tanks; steam iron tanks and other household appliance components; floating buoys for pearl farms; other large thermoplastic components.
Technical specifications
The FUSION 58.35E electric hot-plate welding machine, with its sleek graphic design, delivers welds with outstanding quality and repeatability. It enables assembly of large, flat and complex-shaped thermoplastic parts and produces watertight, high-strength weld joints without added material.
Main features
- HMI: redesigned human-machine interface for improved ergonomics and ease of use
- Adjustment systems (Travel | Force | Time | Temperature) viewable, updatable and programmable from the 12-inch touch screen
- Industry 4.0 communication: OPC‑UA, Ethernet‑IP
- High safety: EMC certified, compliant with Machinery Directive 2006/42/EC, fully enclosed machine
- Clean, particle-free welding with optimized operator settings
- Energy-saving design reducing carbon emissions
Applications
The FUSION 58.35E is suited to plastics manufacturers seeking simple, robust assembly solutions.
- Medical
- Household appliances
- Packaging
- Cosmetics
- Other industrial applications
Partial list of examples of hot plate welded parts
Automotive parts; battery housings; windscreen washer fluid, engine coolant and AdBlue tanks; steam iron tanks and other household appliance components; floating buoys for pearl farms; other large thermoplastic components.
Technical specifications
- 3 electric axes
- Maximum thrust: 1000 daN
- Maximum plate speed: 2000 mm/s
- Latest generation PLC
- Brushless motors
- 12-inch touch HMI
- Heating element dimensions: 580 × 350 mm
- Tooling surface area: 700 × 460 mm – max
- Upper tooling holder table passage: 600 mm
- Maximum height of the parts housed in the lower tool: 700 mm
- Upper press stroke: 380 mm
- Plate cart stroke: 570 mm
- 4 heating zones
- Kinematic programming of upper and lower tooling
- 2 part presences for each tool
- Up to 7 programmable movements at different stages of the cycle (closed screen only)
- Controlled and programmable change of motion sensor states
- Power supply: 400V three-phase + neutral
- Weight: approx. 1,800 kg
