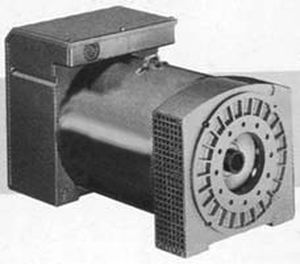

Three-phase alternator BTP3 series
4-poleindustrial

three-phase alternator
three-phase alternator
Add to favorites
Compare this product


Characteristics

Phase
three-phase
Number of poles
4-pole
Domain
industrial
Power in kVA

Min.: 7 kVA
(9.52 hp)

Max.: 18 kVA
(24.47 hp)

Voltage

Min.: 230 V

Max.: 400 V

Description

The BTA3 brush series alternators typically have a compound regulation on the three phases and, apart from having a high motor starting capability (motor starting: 1 HP per KVA), they also yield good single phase performances. With delta connection it is possible to obtain 70% of the plated nominal three phase power and 45% of said power with star and neutre connection. BTA3 series alternators are built as per the following international standards: CEI 2-3, EN 60034-1, IEC 34-1, VDE 0530, BS 4999-5000, NF C 51.111, CAN/CSA - C 22.2 N°100-95. BTA3 alternators are available in two- and four-pole versions and can operate at 50 Hz and 60 Hz. In the four-pole version the stator is skewed while in the two-pole version the stator is straight but the rotor is skewed. The windings are short pitched in order to reduce harmonic content.
