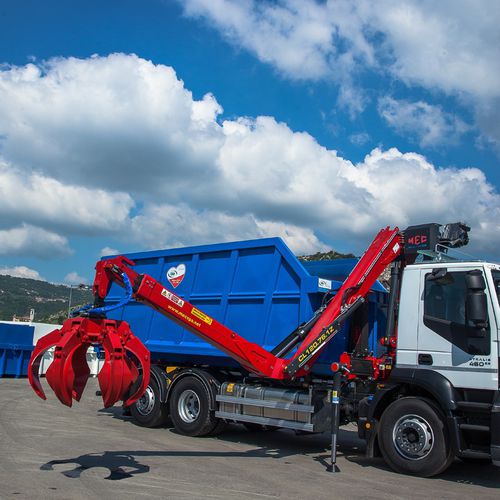

hydraulic crane / truck-mounted / telescopic / articulated
Z Series



  • Configuration:


  • Structure:

    telescopic, articulated

  • Operating environment:

    forestry, for the recycling industry

  • Other characteristics:

    hydraulic, loading, unloading

  • Lift capacity:

    Min.: 550 kg (1,213 lb)

    Max.: 2,100 kg (4,630 lb)

  • Working height:

    Min.: 0 m (0'00")

    Max.: 9 m (29'06")


“Z” series cranes are designed to operate at high speed and at the same they are manufactured with a very solid structure. This specific feature makes them suitable for several uses, among which the forestry field. The possibility of an installation on the rear of the truck and an extension up to 9 meters allows the use of the crane for loading both truck and trailer, without taking off the trailer.
1Z1 - 1Z2 models are top sellers and they can be installed on trucks or on roll on/off containers. The hydraulic extension on the first arm allows to easily load the material close to the truck cab.
The overall dimensions of the arms (in rest position) don’t exceed the edge of the crane basement, so it is suitable for roll on/off containers equipment.
The main technical feature that distinguish the “Z” series from others is that the loader in the resting position, folds behind the cab truck, with its gripping device installed.
