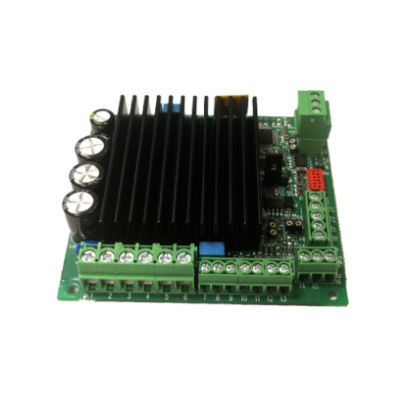

Linear linear actuator driver

Overview
Electronic drive for two synchronized linear actuators. Designed to drive two actuators in parallel using synchronization based on actuator pulse feedback. Synchronization is maintained by automatic speed adjustment during movement; if an imbalance cannot be compensated the motors are stopped by the drive to prevent mechanical stress and damage. The driver includes current limiting, power-stage temperature limiting and can be expanded for Modbus communication.

Key features

• Designed for synchronized parallel driving of 2 actuators
• Synchronization via actuator pulse feedback signal
• Automatic speed adjustment during movement to maintain synchronism
• Automatic motor stop on irreversible imbalance to prevent mechanical damage
• Current limit and power-stage temperature limit
• Speed control
• Motor brake output control
• Acceleration and deceleration ramps
• Stroke length limit control
• Expandable for Modbus communication

Tech values

• Working temperature -20°C / +60°C
• Communication Modbus RTU (RS458)
• Synchronized parallel driving for two actuators
• Current and temperature limiting
• Speed control and ramp management
• Motor brake output control
• Stroke length limit control

Download area (available items)

• Configuration form
• Brochure
• Software and manuals

Technical specifications

• Function: Electronic driver for two synchronized linear actuators
• Intended actuators: two actuators in parallel with pulse-feedback synchronization
• Voltage/current: for linear actuators 12–48 V and 10–15 A per actuator (as indicated in page summary)
• Protection: current limit, power-stage temperature limit, motor stop on unsolvable imbalance
• Control: speed control, acceleration/deceleration ramps, stroke length limit, motor brake output control
• Communication: expandable for Modbus RTU (RS458)
• Operating temperature range: -20°C to +60°C
