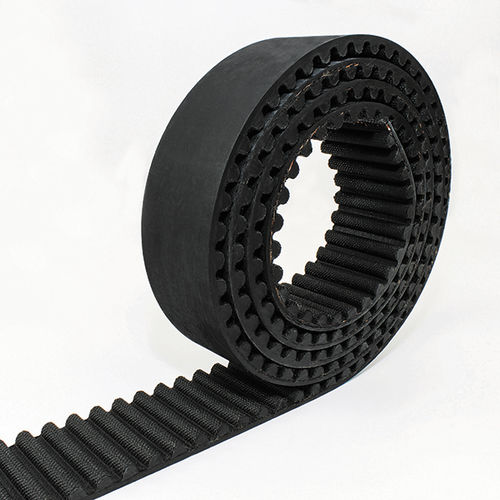

Rubber open end are timing belts specially suitable for reversing drives when rotational movements need to be transformed into linear motions and accurate positioning is required.
RPP STEEL CORD
PLAY
Features
Rubber open end synchronous belts are a perfect alternative to chain or cable.
They have high positioning accuracy on reverse drives.
MAIN COMPONENTS
01 / BELT BACK
The back side cushion protects the tensile members and permits the use of backside idlers.
02 / CORD
The cord is made with high elasticity module fiberglass or steel.
03 / BODY
The belt body is made of special polychloroprene based or EPDM rubber compound.
04 / FABRIC
Nylon fabric on the teeth is treated to improve torque carrying capacity
Timing belts Rubber open end Rubber Open End
MECHANICAL AND CHEMICAL PROPERTIES
constant dimensions
constant length
free maintenance
linear speed up to 50 m/s
low pretension
MEGASYNC™ rubber open end belt working temperature -25°C/+80°C
