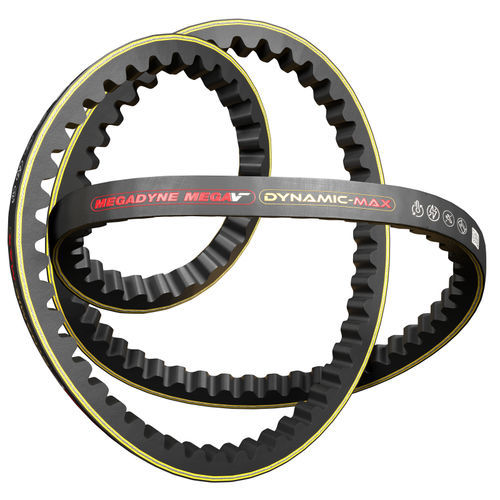

V belt MEGAV DYNAMIC-MAX

EPDMPETrubber

MEGAV Dynamic-MAX is the Megadyne premium rubber Raw Edge V-Belt for demanding applications. It delivers reliable operation across a wide temperature range and in the most demanding industrial or outdoor environments. MEGAV Dynamic-MAX is maintenance-free. Its low-stretch design and compact configuration reduce downtime and system costs while mazimizing machine efficiency and reliability. Features Developed with a next-generation EPDM compound reinforced with transverse fibers and a low-stretch PET tensile cord, MEGAV Dynamic-MAX delivers up to 40% more power compared to standard Raw Edge V Belts (20% more than Linea Gold), while ensuring outstanding dimensional stability. With an energy efficiency at least 95% this belt is optimized for high-speed and heavy-load applications. Main components 01 / BACKSIDE FABRIC To protect against contamination and moisture 02 / ADHESION LAYERS An innovative EPDM compound to guarantee the best possible bonding with the body material 03 / CORD Low-stretch PET cord, no re-tensioning needed 04 & 05 / BODY Featuring a newly EPDM compound with transverse fibers for very high-performance
