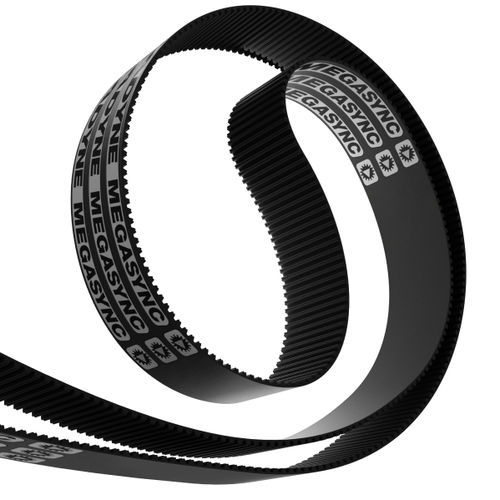

Timing power transmission belt MEGASYNC™ RPP

endlesschloroprenefor machine tools

MEGASYNC™ RPP is the classic type of MEGASYNC™ transmission belt, made in chloroprene rubber and suited for a very wide range of applications. Compared to MEGASYNC™ Imperial Pitch, they can transmit more power per the same width, although they are less performing than the top of the line MEGASYNC™ Titanium, Gold and Silver2 belts. Features The parabolic profile of MEGASYNC™ RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts. MAIN COMPONENTS 01 / BODY The body is made from an innovative rubber compound, reinforced with a special fiber; hardness 74 ShA. 02 / CORD Continuous helically wound fiberglass cords form the tensile member of the belt. 03 / COVER A wear-resistant nylon fabric with self-lubricant capability covers the teeth surface. Timing belts Rubber endless MEGASYNC™ RPP and RPP DD MECHANICAL AND CHEMICAL PROPERTIES less noise less pre-tension higher transmittable torques improved resistance to tooth jump and to tooth shear MEGASYNC™ RPP belt working temperature - 25°C/+80°C
